Well now, if ya ever got yer hands on a Suzuki motorcycle and found yerself tangled up in wires, don’t worry none. I been around a bit and I can tell ya, it’s not that hard to get ’em sorted out if ya know what them colors mean. So here, I’ll share a bit about them bike color codes and wiring diagrams. Grab a chair, sit down, and let’s have a chat ’bout it.
First things first, every motorcycle, especially them Suzukis, has a wiring diagram that can make or break yer understanding of what’s going on under the hood, or under the seat, or wherever they hide them wires nowadays. You see, them diagrams got color codes that tell ya where each wire goes. It’s like a map. If ya follow the right path, you won’t get lost.
Red Wires – Now, red wires? They’re as important as the food in yer pot. Red usually means battery power. That’s the wire that brings the juice from yer battery to keep things runnin’. So when you see a red wire, ya better believe it’s carrying some serious electricity.
Black Wires – And then there’s black. Black wires, they’re all about the ground. That’s right, they’re connected to the metal parts of yer bike to keep everything grounded. If ya ever find yer bike not starting, might be a problem with the black ground wire. Ya can check the connection, make sure it’s clean and tight, just like makin’ sure yer front door’s locked tight before ya head out the door.
Green and Gray Wires – For them turn signals, green and gray are the stars. If ya look at the right turn signal, ya’ll find a gray wire, and if it’s the left one, it’s green. Sometimes, folks get confused with these wires, but it’s simple—gray is right and green is left. So, if ya want to make sure the turn signals are workin’, ya better connect ‘em right. Ain’t nothing worse than turnin’ left and havin’ the right signal blinkin’.
Blue Wires – Now, blue wires are a little special. They handle the ignition. When you see a blue wire, it’s usually connected to the engine startin’ system. If yer bike ain’t startin’, it might be this wire that’s causin’ trouble. Just like if yer ol’ rooster ain’t makin’ noise, might be somethin’ with its feathers, right?
Yellow Wires – Then there’s the yellow wire. Yellow is for accessories. Things like the horn or extra lights that you might wanna add to yer bike. If you got a horn that ain’t workin’, make sure the yellow wire’s connected to the right place.
White Wires – Don’t forget about white. It’s often used for neutral connections. So if yer bike’s stuck in gear and yer tryin’ to get it into neutral, check for them white wires. They got a big say in things runnin’ smooth.
Now, when ya start hookin’ up these wires, it’s important to match ’em up with the wiring diagram. If yer sittin’ there, scratchin’ yer head, tryin’ to figure out which wire is which, you just gotta look at the colors. The diagram will show ya where each wire goes and what it’s for. If you’re missin’ a wire or the wrong wire’s connected to the wrong thing, ya might end up with a mess. Ain’t nobody got time for that!
If yer troubleshooting and things ain’t lookin’ right, one good tip is to check the instrument panel. Sometimes, if yer running lights ain’t workin’ but yer turn signals are, it might mean there’s a problem with the wiring. It could be a bad connection somewhere or maybe a wire got loose. Just like how a wagon wheel falls off if ya don’t check it every so often, them wires need to be checked, too.
And when ya get to doin’ some repairs, don’t forget to check the wiring from yer tail lamp. Sometimes the wires from the tail lamp need to stay powered up all the time, and if they ain’t, it can cause all sorts of confusion. So, if you’re havin’ issues with lights, give that tail lamp a good look.

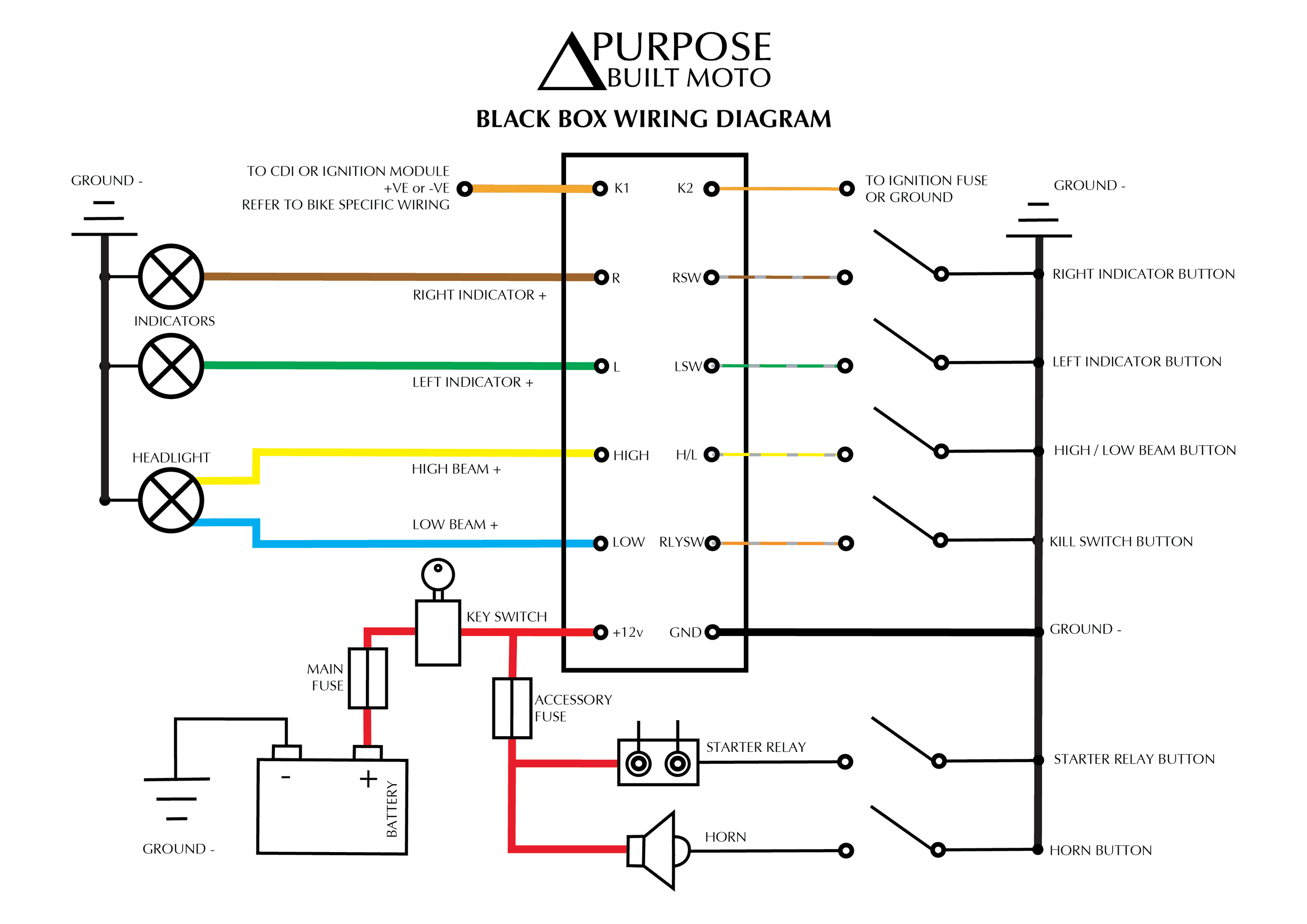

Finally, remember that the wiring diagram is yer friend. It’s like a big ol’ map that’ll show ya how to connect everything. Whether it’s turn signals, headlight, or brake lights, the diagram will tell ya how and where to hook them up. It’s all about the connections, just like the connection ya have with yer friends and family. If the connections are good, everything runs smooth.
So, there ya have it! With these Suzuki motorcycle wiring color codes and a trusty wiring diagram, you’ll be able to get your bike back on track in no time. Just remember to keep the wires clean, match up the colors, and always check yer connections. No reason to get tangled up, right?
